Leveraging Box Plots for Advanced Data Insights in Power BI

Relying solely on basic bar or line charts can sometimes limit your analytical depth. To truly grasp the distribution, spread, and potential outliers within your datasets, a more sophisticated statistical chart is often necessary. This is where the Box Plot, also known as a box and whisker plot, emerges as a powerful and concise visualization, effectively presenting your data's five-number summary.

This blog post will delve into what box plots are, their effectiveness, how to interpret them, and the essential features to look for. We'll also explore how Inforiver Analytics+ enhances box plot capabilities within your Power BI dashboards, empowering you to unlock deeper insights into your data's underlying patterns.

1. What is a Box Plot and Why Use It?

A Box Plot provides a standardized visual representation of data distribution based on a five-number summary: the minimum value, first quartile (Q1), median, third quartile (Q3), and maximum value.

What it shows:

• The "box" itself signifies the interquartile range (IQR), encompassing the middle 50% of your data (from Q1 to Q3).

• The line inside the box precisely indicates the median, representing the middle value of your data set.

• "Whiskers" extend from the box to the minimum and maximum values within a specified range, typically 1.5 times the IQR. Any data points beyond these whiskers are identified as potential outliers.

Why use it? Box plots are exceptionally useful for:

• Comparing distributions: They allow for easy visual comparison of how data is spread across various categories or groups.

• Identifying outliers: Box plots clearly pinpoint data points that significantly deviate from the rest of the dataset.

• Understanding skewness: They provide a quick visual cue as to whether your data is symmetrical or skewed to one side.

• Summarizing large datasets: Box plots enable the presentation of a substantial amount of information in a compact and easily digestible format.

Conceptually, the plot divides your data into quartiles. The central box highlights where the majority of your data resides, while the whiskers delineate the overall data range and draw attention to potential extreme values.

2. How to Interpret a Box Plot

Interpreting a box plot is intuitive, offering a clear snapshot of your data's characteristics. Let's consider an example, such as one displaying monthly sales data.

• The Median (The Line in the Box): This horizontal line within the box indicates the median sales for that period. It signifies the central tendency, meaning half of the sales figures fall above this line, and half fall below.

• The Box (Interquartile Range - IQR): The box itself represents the middle 50% of your sales data. A narrower box suggests that the central sales figures are tightly clustered, indicating less variability. Conversely, a wider box implies greater spread and variability within the middle half of your sales.

• The Whiskers: These lines extending from the box provide insight into the data's overall spread. The upper whisker reaches to the highest sales value within 1.5 times the IQR from Q3, while the lower whisker extends to the lowest sales value within 1.5 times the IQR from Q1.

• Outliers: Individual points plotted beyond the whiskers are considered outliers. In a sales context, these could represent unusually high or low sales figures that warrant further investigation.

• Skewness: The position of the median within the box and the relative lengths of the whiskers can indicate the skewness of your data. If the median is closer to the bottom of the box and the upper whisker is longer, the data is likely positively skewed (more high values). If the median is closer to the top and the lower whisker is longer, it's negatively skewed (more low values).

3. Inforiver Analytics+ Box Plots

Inforiver Analytics+ provides a comprehensive and highly customizable Box Plot experience. It allows you to compare distributions and find outliers between different groups of data, offering the flexibility to create box plots with or pre-calculated values.

Here's what makes Inforiver Analytics+ Box Plots stand out:

• Flexible Configuration:

• Inforiver Analytics+ can accept pre-calculated quartiles or can dynamically calculate the interquartile ranges based on your raw data values.

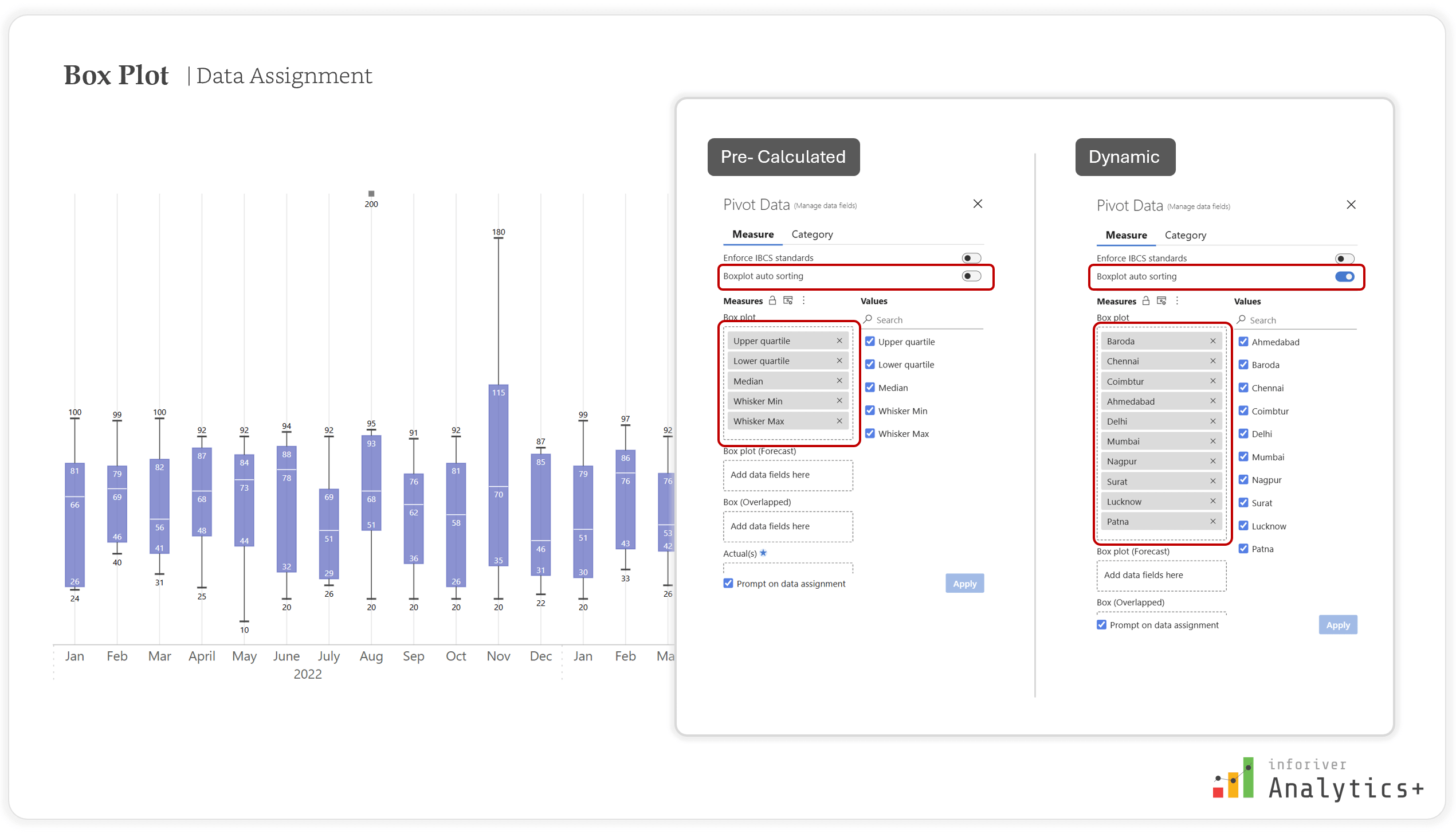

• For pre-calculated quartiles Assignment, A minimum of 3 measures (Lower Quartile, Median, Upper Quartile) is needed to configure the Box Plot visual. Assign measures and make sure "Boxplot auto sorting" is set to OFF

• For Dynamic assignment of box plot values, assign the values, enable "Boxplot auto sorting". Enabling this option will calculate the median, upper/lower quartile and min/max whisker based on the given data. Inforiver analytics+ can add up to 50 Values for calculation.

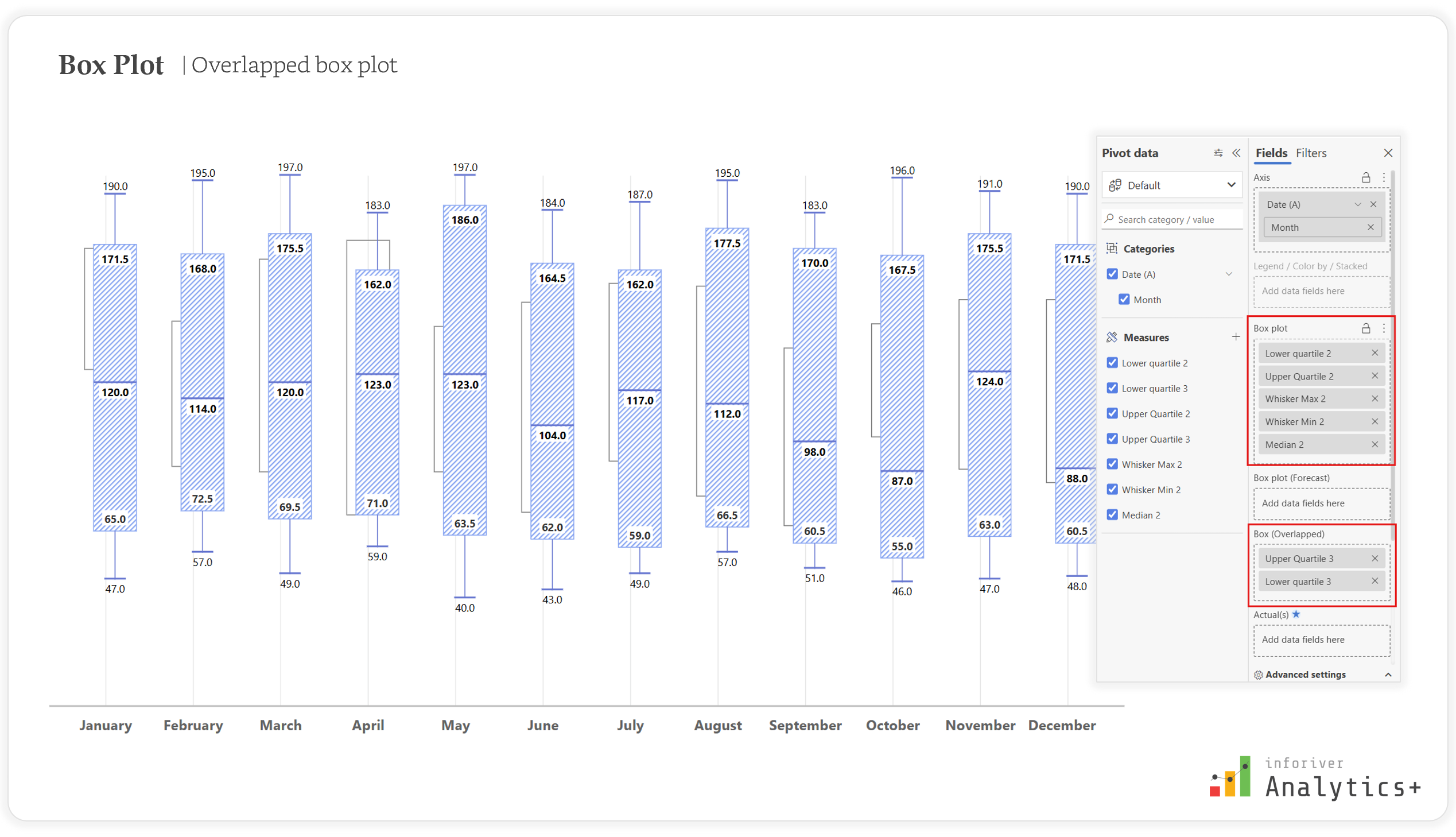

• Overlapped Measures: Configure box plots with overlapped measures to visualize multiple distributions simultaneously. This allows for direct comparison of different measures within the same visual.

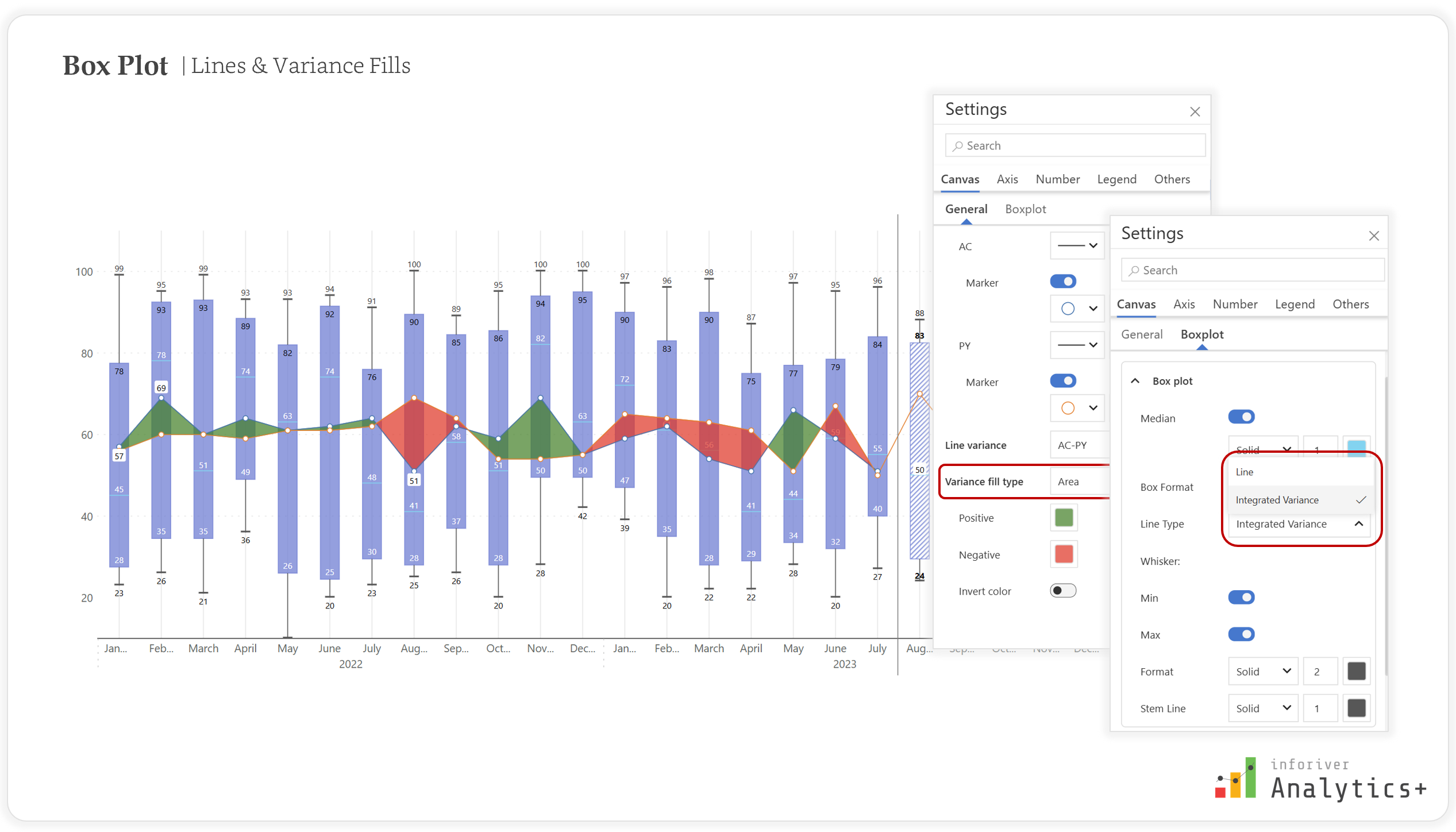

• Displaying Variances: Plot variances for overlay measures by selecting the Line types, just lines or integrated variances. You can even plot the variance fill as an area chart or use lines.

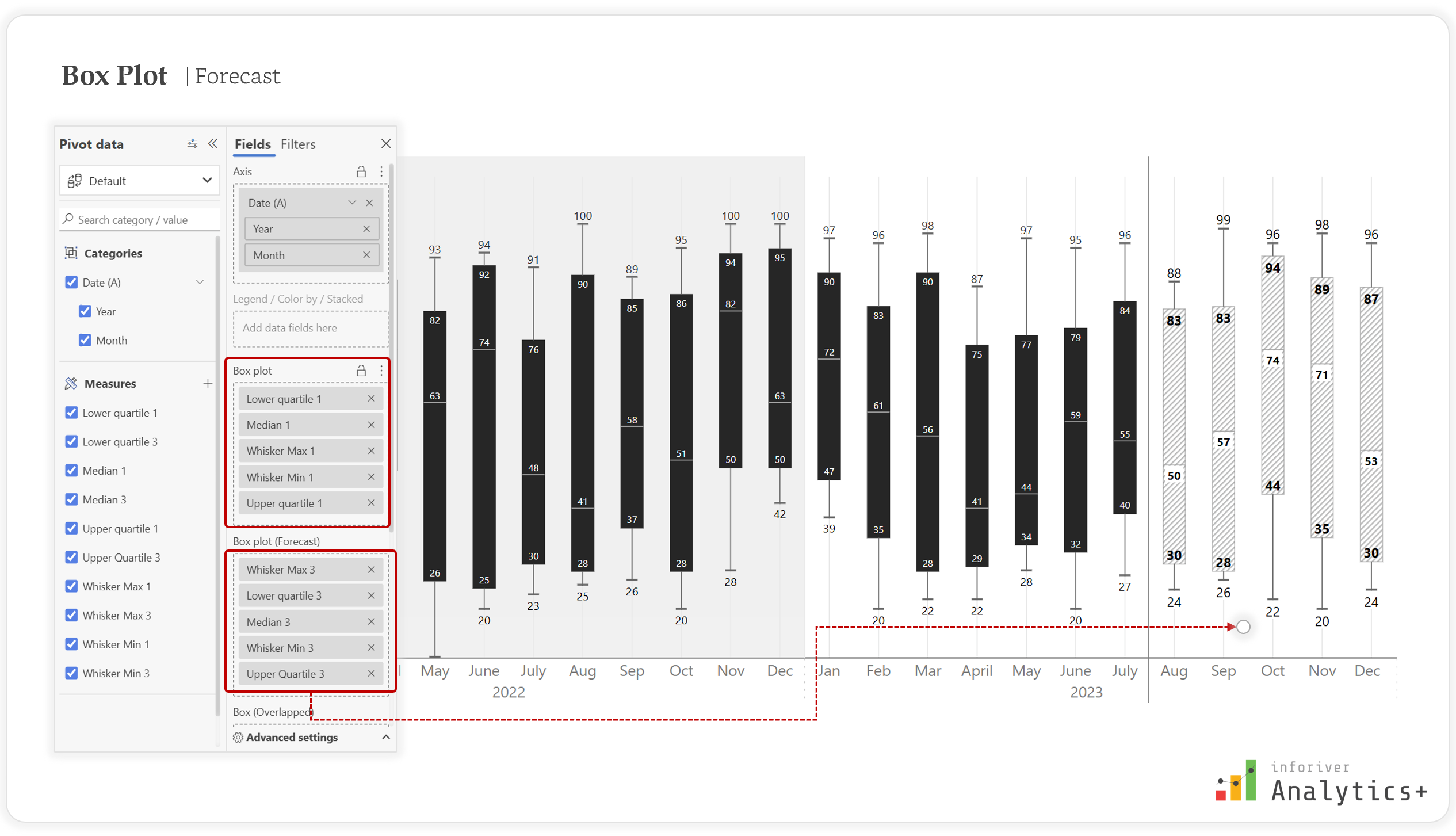

• Forecast Box Plots: Project future distributions with forecast box plots, helping you anticipate trends and potential outcomes.

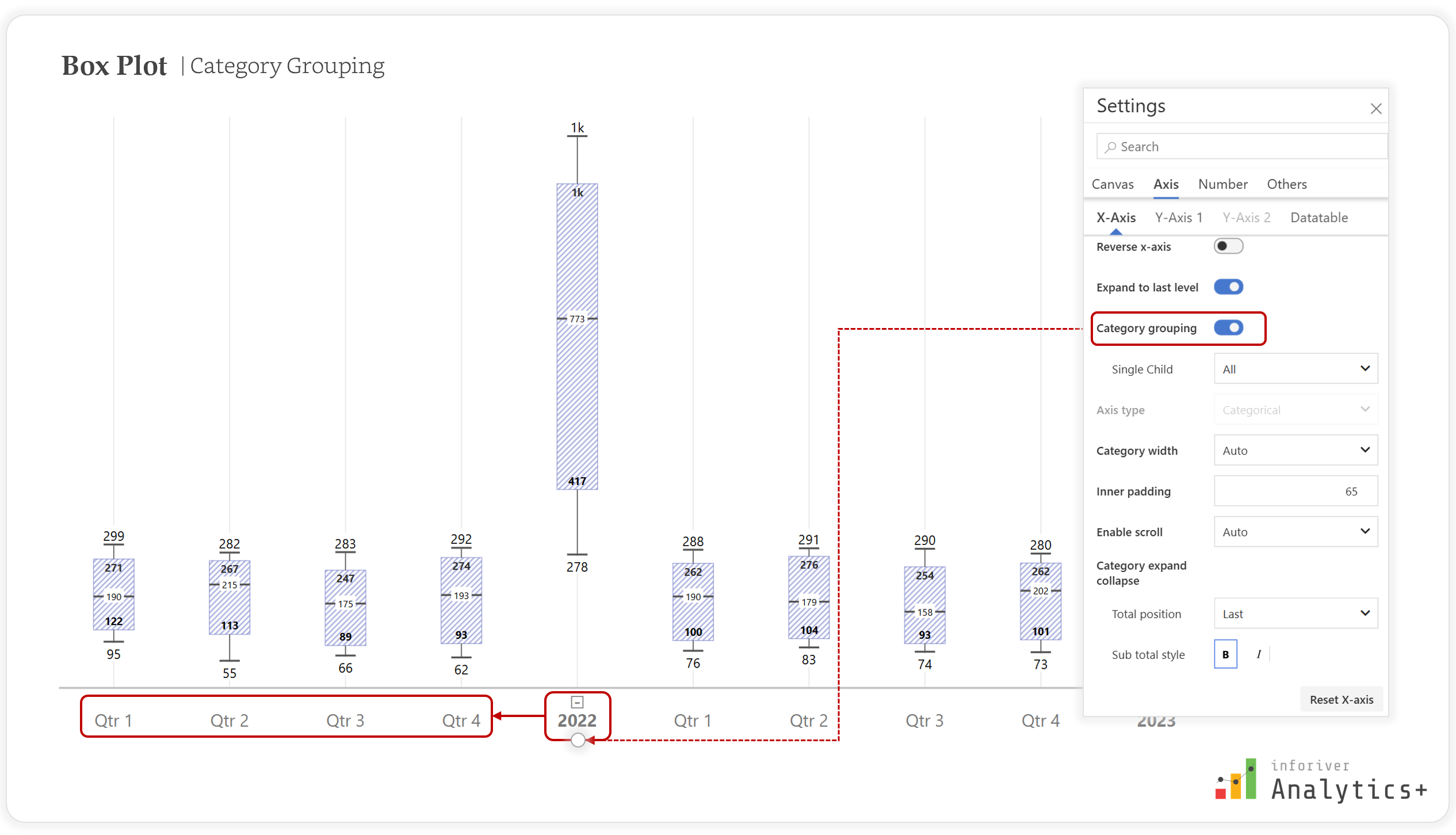

• Category Grouping: Group values by year and quarter or other hierarchies to provide more granular insights. You can choose to show axis hierarchy as category grouping or subtotal grouping.

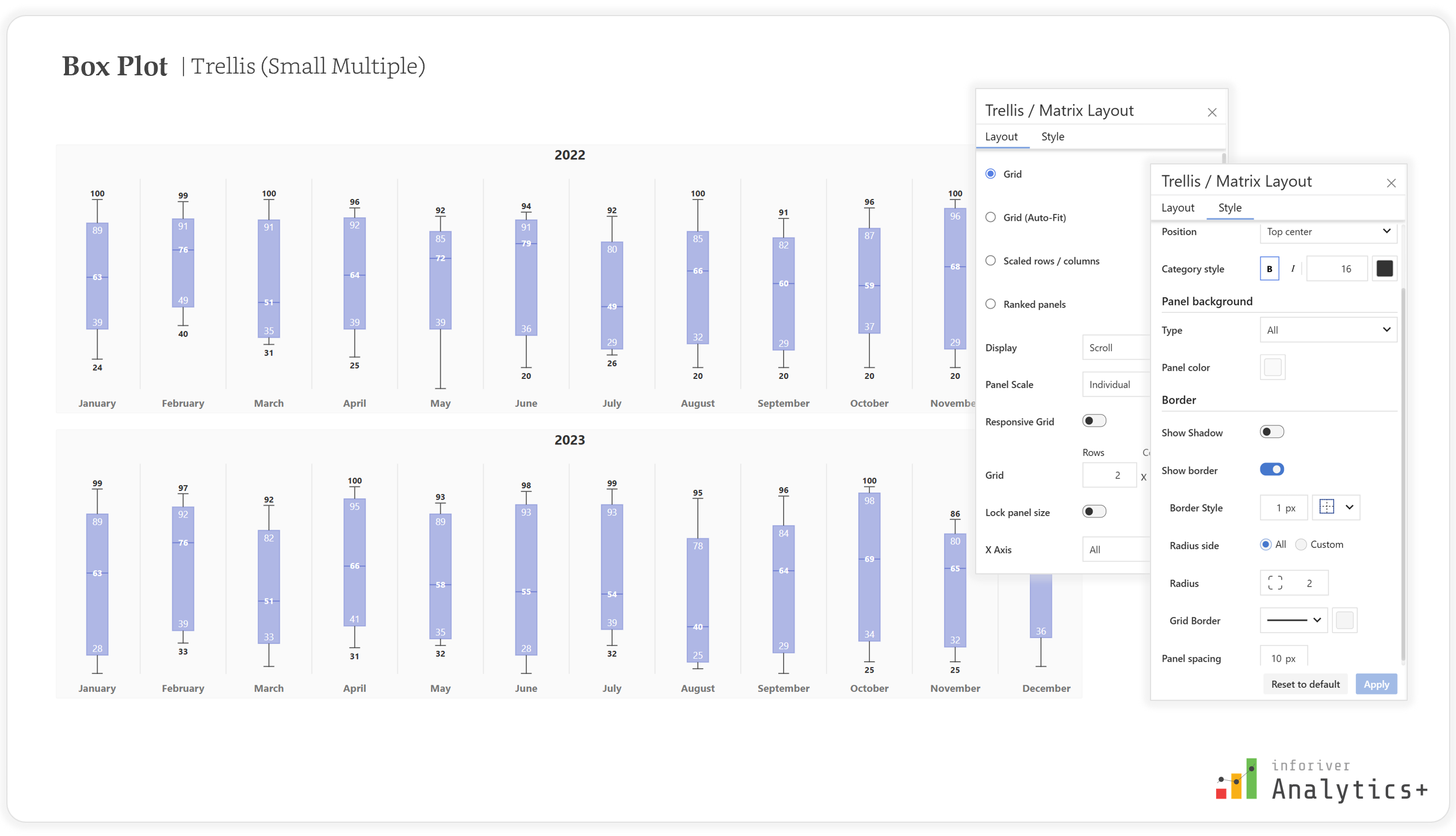

• Trellis Support: Use trellis to split your box plots across multiple panels, allowing for detailed comparisons across different categories or time periods with either uniform or individual scaling per panel.

• Other Rich Features: Apart from above mentioned features, Inforiver Analytics+ Box Plots also offers various features such as

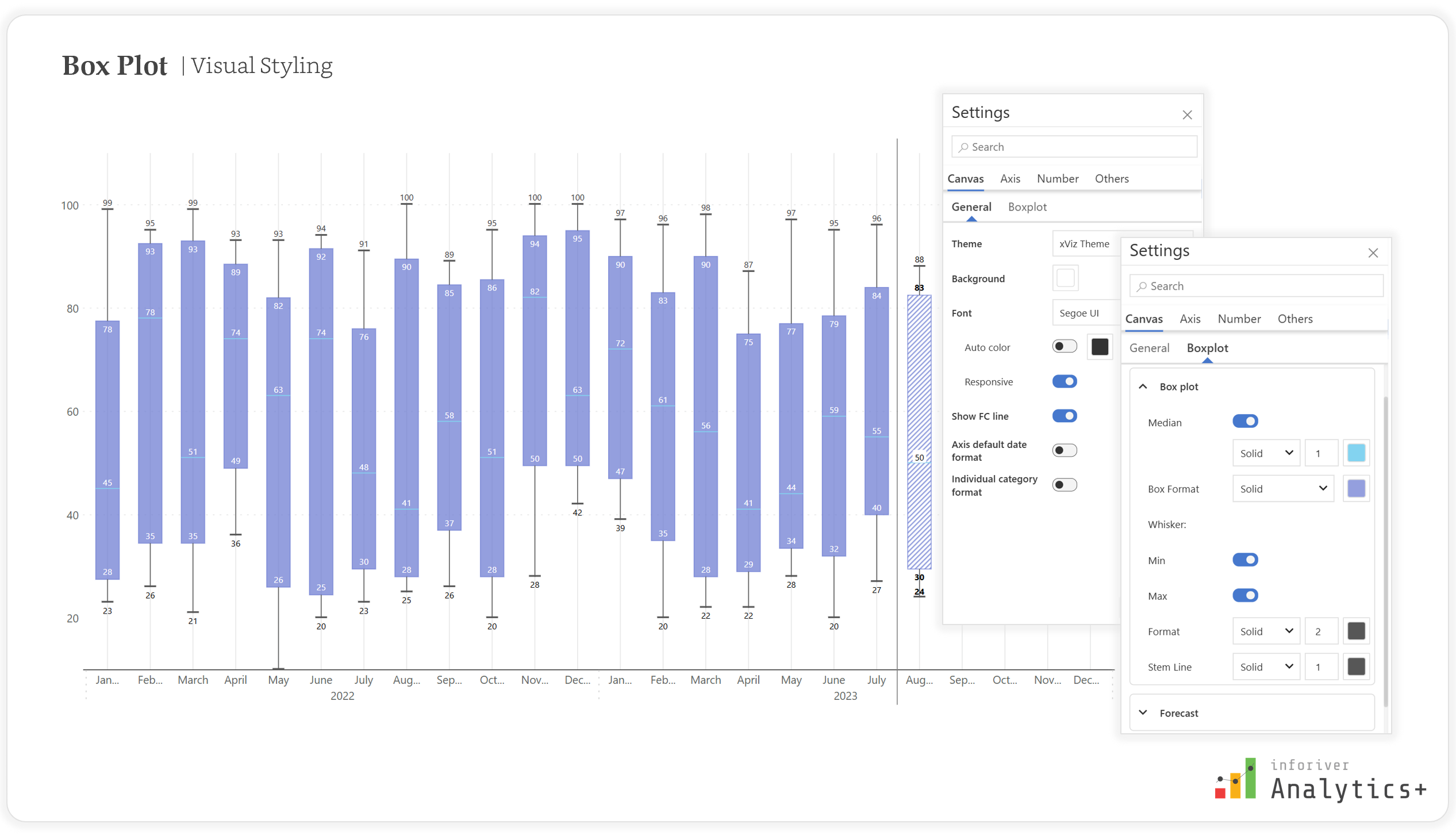

• Visual styling through canvas configuration & axis customization

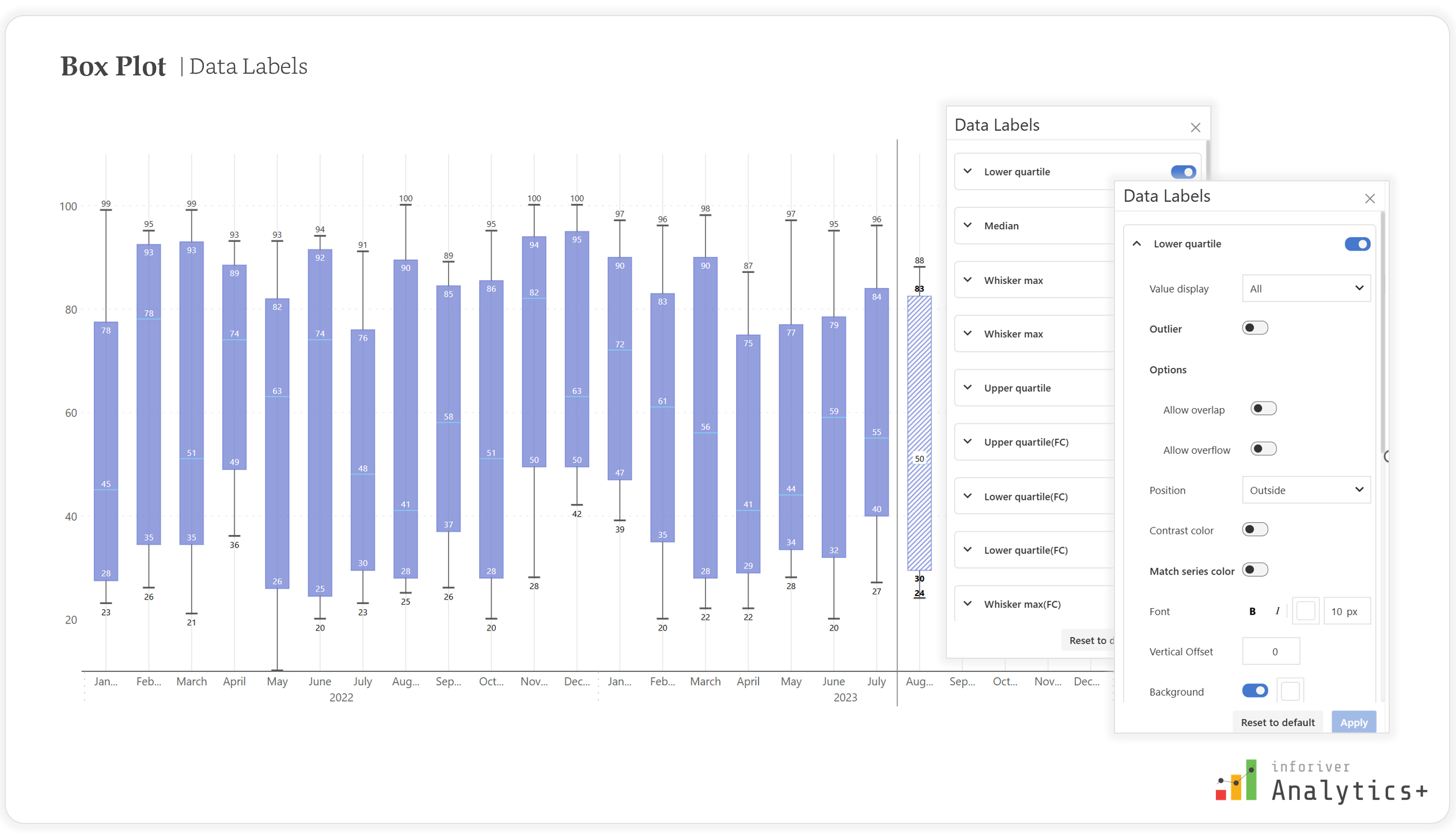

• Data Labels for Upper & Lower quartiles, Median, Max

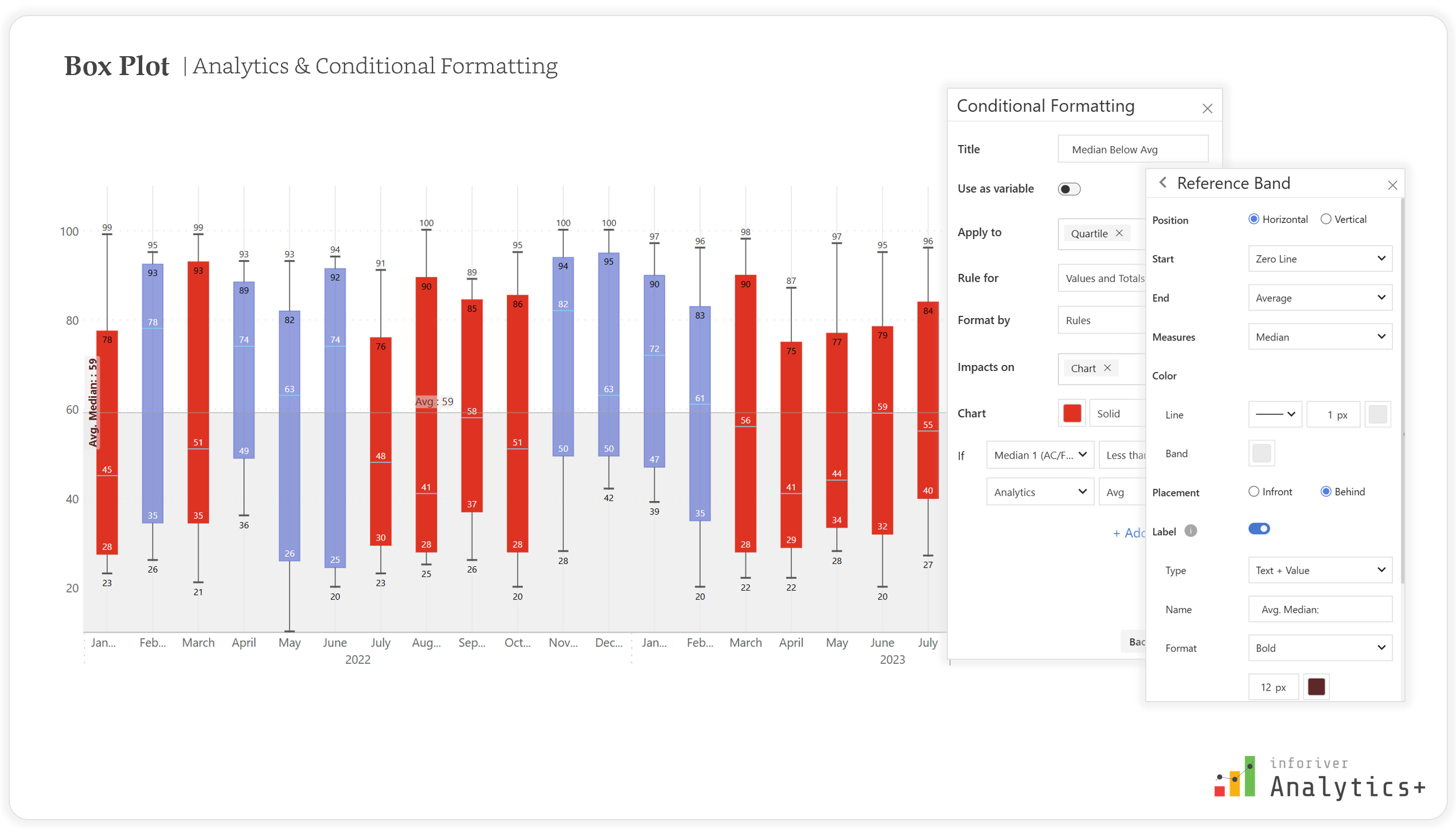

• Analytics & conditional formatting

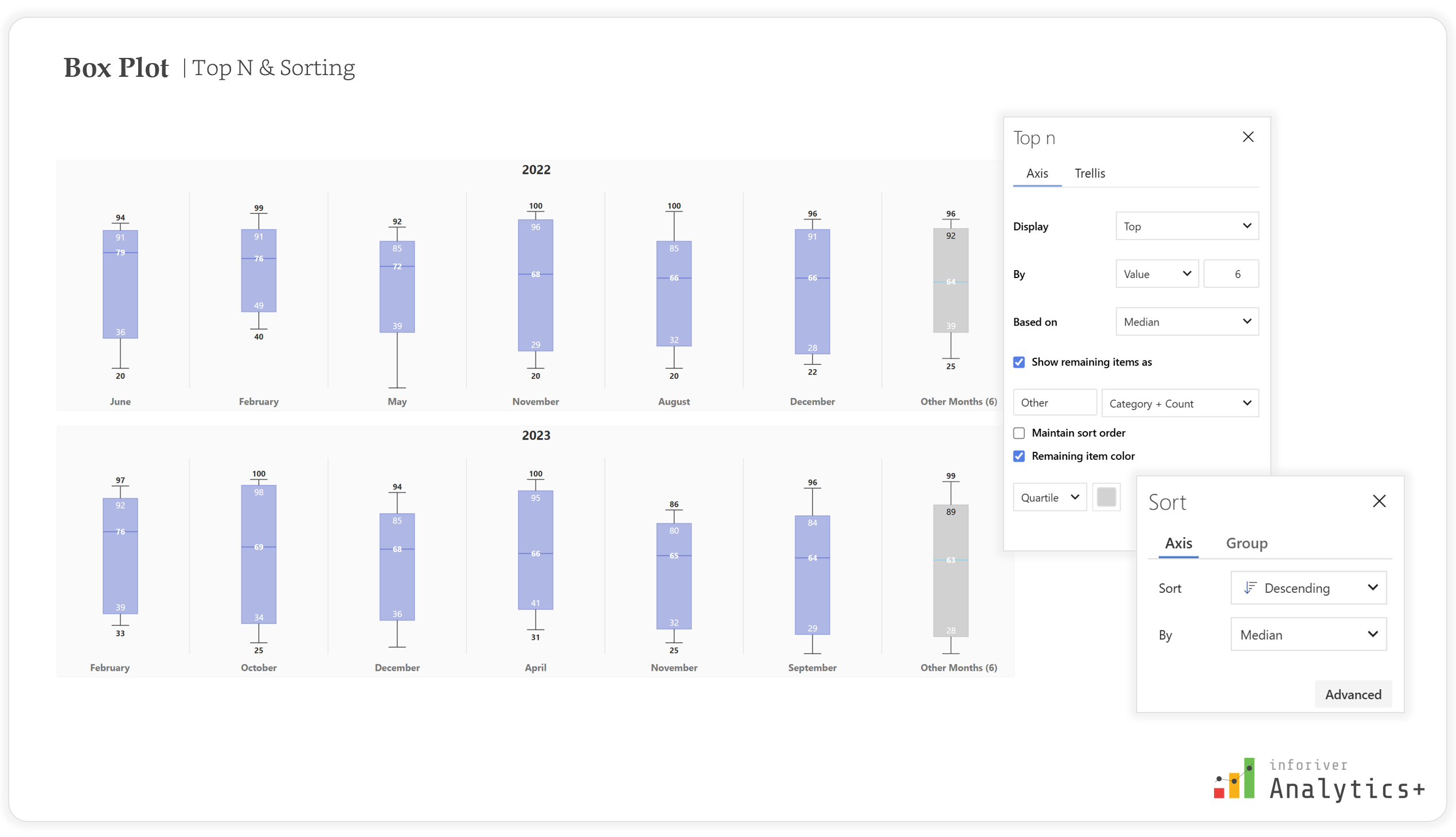

• Top N filtering and sorting

Don't let the limitations of native visuals hold you back from truly understanding your data's distribution. Elevate your Power BI dashboards with the advanced Box Plot capabilities of Inforiver Analytics+.

Conclusion

Box plots provide a clear way to illustrate distribution, spread, and outliers within data. Their simplicity makes complex statistical concepts more accessible, while their structure highlights insights that may otherwise remain hidden. With advanced features in Inforiver Analytics+ for Power BI, including flexible axis control, intelligent data labels, conditional formatting, annotations, Top N filtering, and Trellis support, you can extend the value of box plots to deliver deeper, actionable insights.
